In 2023, Kiln 04 at GCC’s Chihuahua cement plant in Mexico was running manually. In pursuit of increased productivity, an advanced process control system was pursued with the specific aims including:
- Reduce free-lime variation to improve clinker quality
- Increase the substitution alternative fuels without risking carbon monoxide or sulphur spikes
- Reduce stoppages and thus improve overall performance.
- Avoid build-up, rings, and coating falls resulting from high temperatures
After another supplier’s advanced process control system did not deliver to expectation, the company turned to FLSmidth Cement and ECS/ ProcessExpert® (PXP) solution.
We commissioned PXP v.8.5 at the Chihuahua plant in early 2024. It wasn’t long before the plant saw results. Production rose by 2% while heat consumption reduced by 1%. These numbers along with the new self-adaptive controller convinced GCC to upgrade the kiln line to PXP v9.1
The ECS/ ProcessExpert (PXP) v9.1 effect
PXP v9.1 features our latest advanced self-adaptive controller. An alternative to traditional MPC-based systems, self-adaptive control enhances the software’s responsiveness to changing process dynamics without depending on detailed process models. It evaluates process information in real time, making it more resilient to process changes and better able to generate dynamic predictions. The result? Even more significant performance benefits than previous PXP iterations.

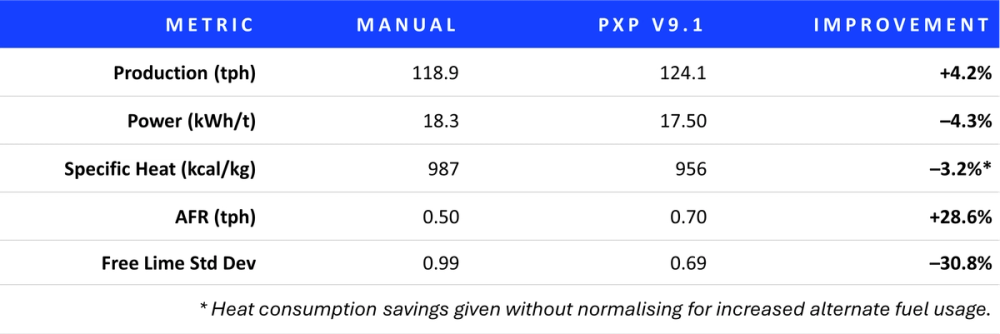

This manifested as a 4.2% increase in production at the GCC Chihuahua plant compared to manual operations. Power and heat consumption also significantly reduced, while the free lime standard deviation dropped by 31%. Implementing PXP v9.1 also enabled the plant to significantly increase alternative fuel consumption, supporting GCC’s aims to raise alternative fuel use at its operations.
“It gives me a lot of pleasure achieving total success of this critical project. Having shared experiences with the control room operator and shift supervisors in operating the PXP v9.1, we are all pleased with the results. Thanks to the FLSmidth Cement team for their talent, effort, and dedication to the project to benefit GCC and the Chihuahua plant.”
Ing. Carlos Guerrero Anaya Regalado, production manager, GCC Chihuahua plant
What made the difference?
So, what made the difference at the Chihuahua plant? PXP improved stability to a degree never seen before, and at the same time resulted in better control of NOx, carbon monoxide, and oxygen such that allowed more alternative fuels could be used safely. Ring and coating formation was also reduced. Ultimately, there were fewer process upsets thanks to smarter, self-adaptative controller.
